Display Images on Hover Labels
Place images in an expression column to display them on a label in a graph. When you place your cursor over a data point or histogram bar, the label with data and the image appears.
1.
Create a new column in your data table.
2.
Right-click the column, select Column Info, and select the Expression data type.
3.
Click OK.
4.
Drag graphics from your computer into each cell of the column. You can also import data that contains a column of images.
5.
Right-click the column in the data table and select Label.
6.
Create a graph (for example, in Graph Builder or Distribution).
7.
Place your cursor over a data point or a histogram bar.
The image appears on the label. Run the Graph Builder script in the SAS Offices.jmp sample data table to see an example (Figure 8.26).

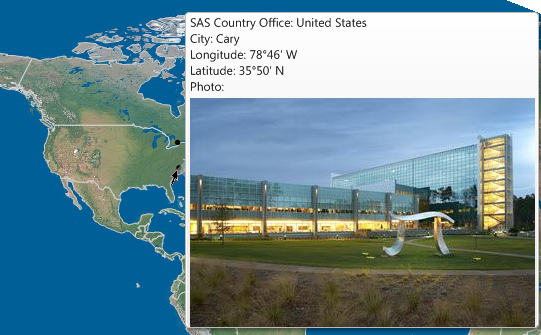

Figure 8.26 Image on Hover Label
Tips:
•
Images in an expression column can also be used as markers. See Use Images as Markers for details.
•
You can pin the hover label so that the label always appears on the graph. See Pin Hover Labels on a Graph for details.
