Select Help > Sample Data Library and open Popcorn.jmp.

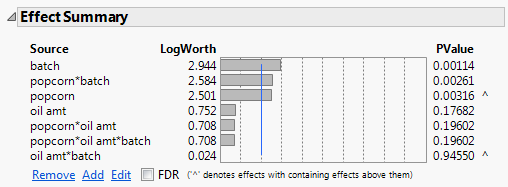

Figure 3.13 Effect Summary Report
In the Effect Summary report, notice that the popcorn*batch interaction has a small p-value (0.00261). From this, you conclude that there is a significant interaction between popcorn and batch.
3.
Click the Response yield red triangle and select Save Columns > Prediction Formula.
4.
Click the Response yield red triangle and select Save Columns > Mean Confidence Interval.
This adds two new columns to the data table: Lower 95% Mean yield and Upper 95% Mean yield.
5.
Select Graph > Graph Builder.
7.
Select popcorn and drag it to the X zone.
8.
Select batch and drag it to the Group X zone.
9.
Select oil amt and drag it to the Group Y zone.

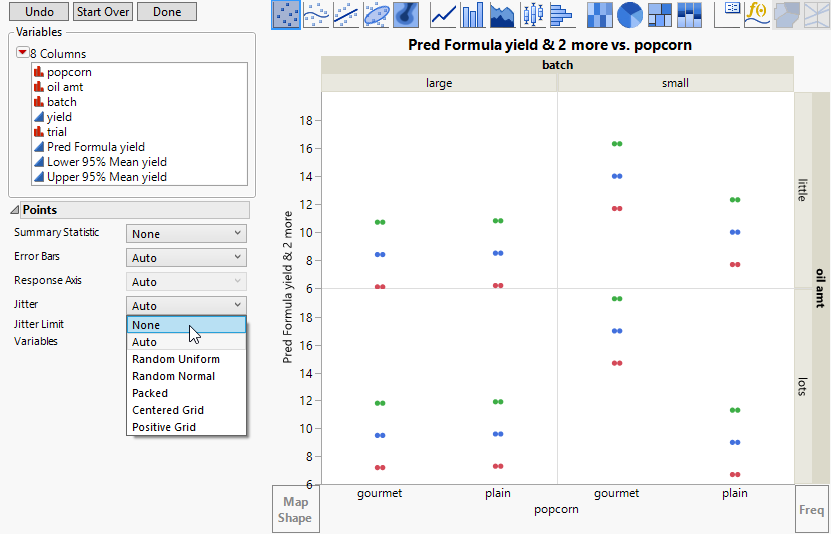

Figure 3.14 Yield Values for the Eight Factor Combinations
Format the graph to see interval bars for Lower 95% Mean yield and Upper 95% Mean yield, and to see points for Pred Formula yield.
Figure 3.15 Confidence Limits and Means Plotted as Side-by-Side Bars
12.
In the Bar options panel, select Interval from the Bar Style menu. See Figure 3.15.

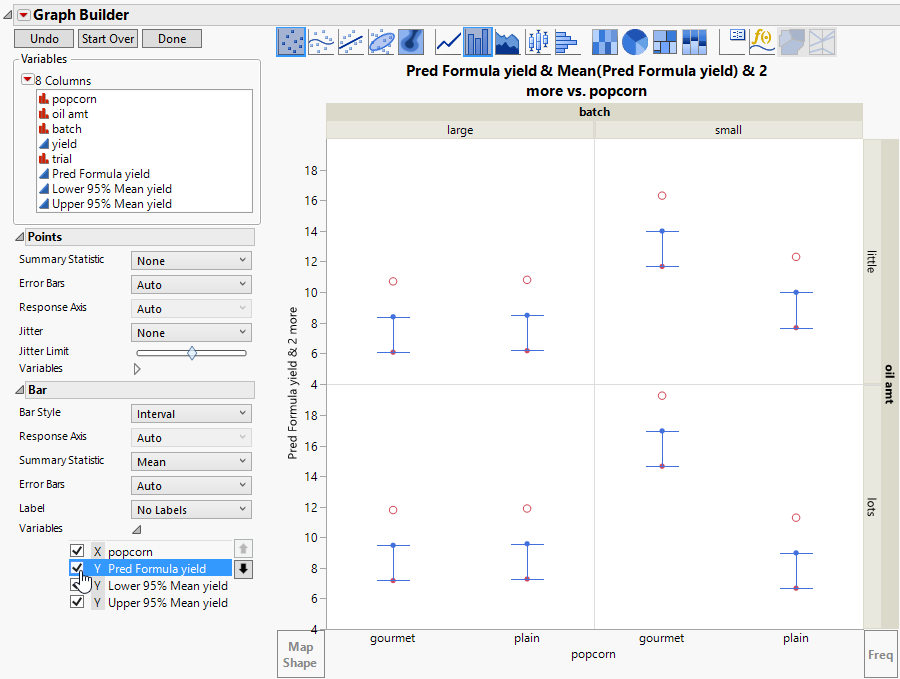

Figure 3.16 Interval Bar Style Applied to Three-Y-Axis Variables
The interval bar style currently spans from Lower 95% Mean yield to Pred Formula yield, but you want it to span up to Upper 95% Mean yield. Remove the bar element for Pred Formula yield.

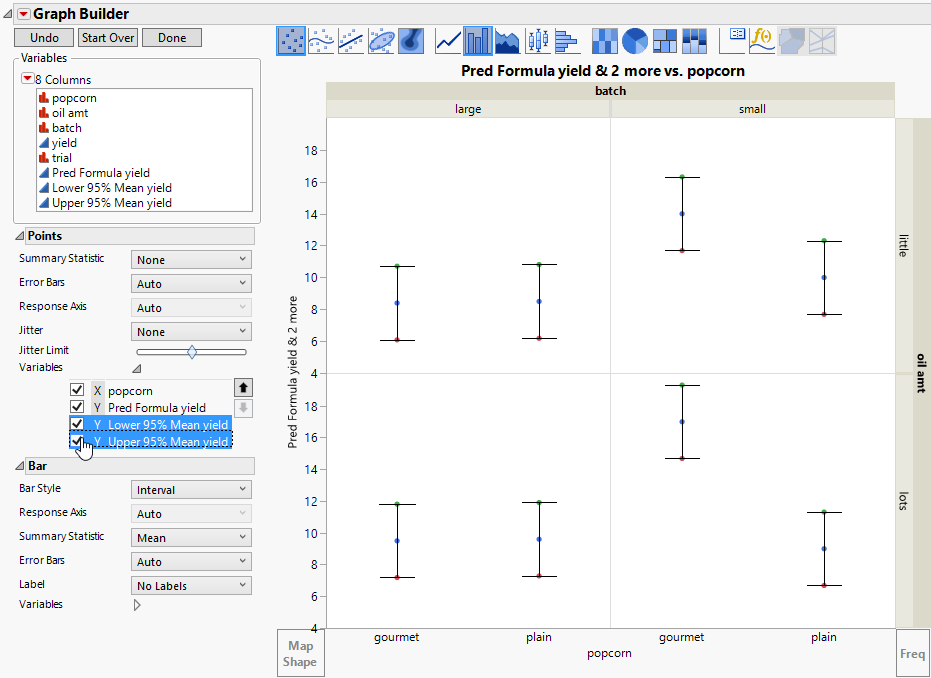

Figure 3.17 Interval Span for Confidence Boundaries
Remove the point graph element for Lower 95% Mean yield and Upper 95% Mean yield.
14.
In the Points options under Variables, deselect Y Lower 95% Mean yield and Y Upper 95% Mean yield. See Figure 3.17.

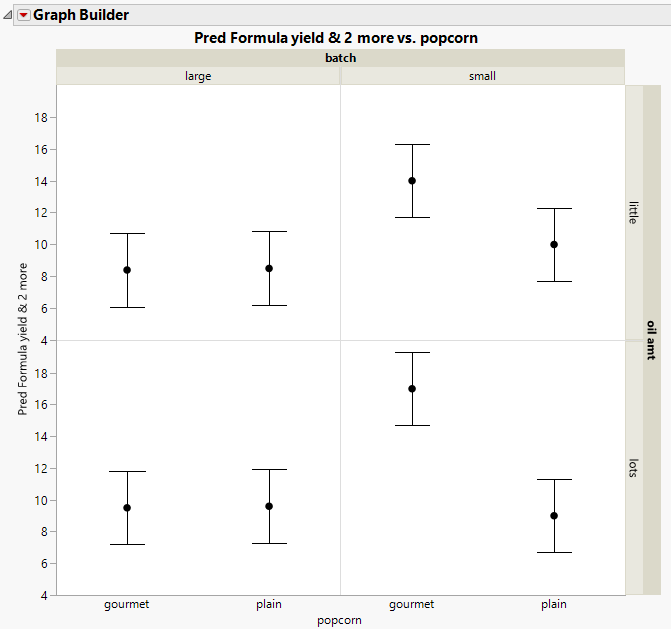

Figure 3.18 Predicted Means and Confidence Intervals
From Figure 3.18, you can see the following relationships:
