1.
|
Notice Lung Cancer Responses.jmp has only one column (Lung Cancer) with two rows (Cancer and NoCancer).
2.
|
3.
|
Select Multiple Tables, Cross-Referenced from the list next to Data Format.
|
4.
|
5.
|
6.
|

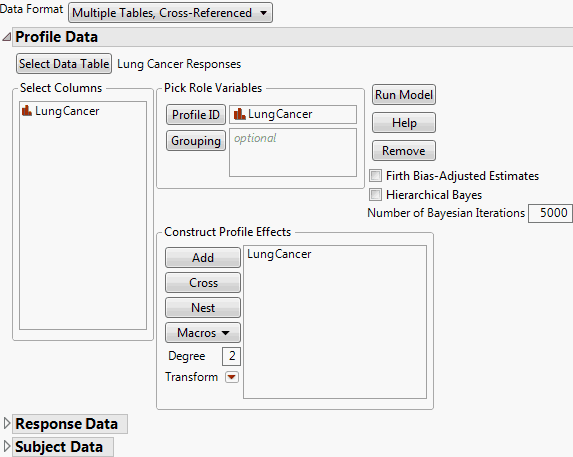

Figure 5.37 Completed Profile Data Panel
8.
|
Open the Response Data outline.
|
9.
|
–
|
–
|
–
|

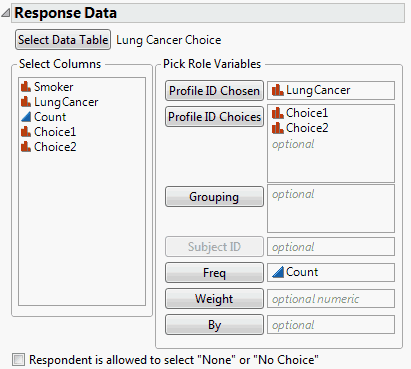

Figure 5.38 Completed Response Data Panel
11.
|
Open the Subject Data outline.
|
12.
|
13.
|

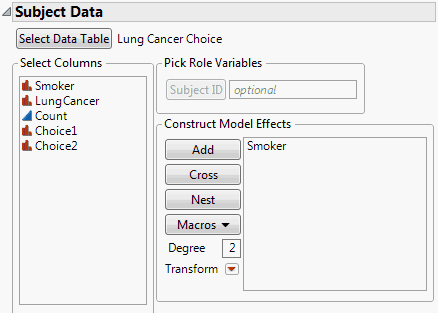

Figure 5.39 Completed Subject Data Panel
14.
|
Click Run Model.
|

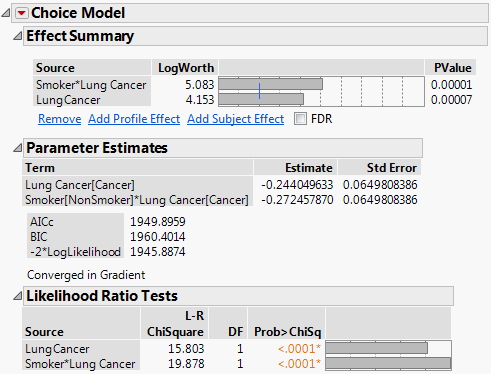

Figure 5.40 Choice Modeling Logistic Regression Results
1.
|
2.
|
Because the data table contains a model script, the Model Specification window is automatically completed. The Nominal Logistic personality is selected.
3.
|
Click Run.
|
Figure 5.41 Fit Model Nominal Logistic Regression Results
Notice that the likelihood ratio chi-square test for Smoker*Lung Cancer in the Choice model matches the likelihood ratio chi-square test for Smoker in the Logistic model. The reports shown in Figure 5.40 and Figure 5.41 support the conclusion that smoking has a strong effect on developing lung cancer. See Logistic Regression Models in the Fitting Linear Models book for more details.
