Launch the Control Chart Platform
When you launch the Control Chart platform by selecting Analyze > Quality And Process > Control Chart, you will see a Control Chart Launch window similar to Figure 3.3. The exact controls vary depending on which type of chart you select. Initially, the window shows the following types of information:
•
Process information, for measurement variable selection
•
Chart type information
•
Limits specifications
•
Specified statistics
Specific information shown for each section varies according to the type of chart that you select. Through interaction with the Launch window, you specify exactly how you want your charts to be created. The following sections describe the window elements.

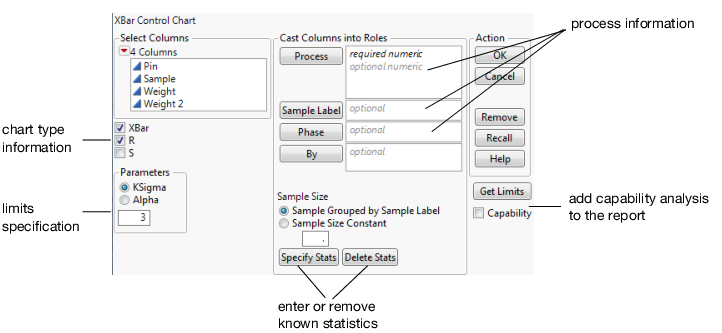

Figure 3.3 XBar Control Chart Launch Window
