Reliability and Survival Methods • Degradation • Model Reports • Model Lists

•

The Model List report gives summary statistics and other options for every fitted model. Figure 6.19 shows an example of the Model List with summaries for three models.

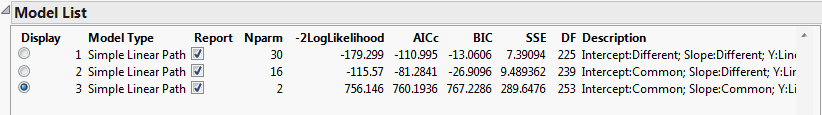

Figure 6.19 Model List

Select the model that you want represented in the Overlay plot, Residual Plot, Inverse Prediction plot, and Prediction Graph.

Gives the type of path, either linear or nonlinear.

Select the check boxes to display the report for a model. For more details about the reports, refer to Reports.

Gives the number of parameters estimated for the model.

-2LogLikelihood

Gives twice the negative of the log-likelihood. See Likelihood, AICc, and BIC in the Fitting Linear Models book.

Gives the corrected Akaike Criterion. See Likelihood, AICc, and BIC in the Fitting Linear Models book.

Gives the Bayesian Information Criterion. See Likelihood, AICc, and BIC in the Fitting Linear Models book.

Gives the error sums-of-squares for the model.

Gives the error degrees of freedom.

Gives a description of the model.

•
