Navigate Reports

JMP reports are displayed in standard windows with scroll bars and options to resize. They also have other special buttons and menus like those illustrated in Figure 8.2 and those discussed in the following sections.

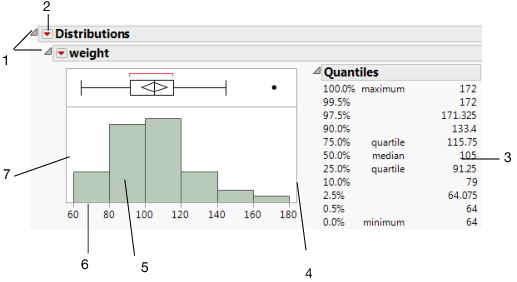

Figure 8.2 Basics of the Report Window

Table 8.1 Report Window Actions
Number	Action
1	Click on the disclosure icons to hide or show sections of the report.
2	Click on the red triangle menus to access report options.
3	Right-click in the table to access formatting options.
4	Click and drag on the borders to resize graphs.
5	Right-click anywhere in the graph to access formatting options.
6	Right-click within the axis to access formatting options.
7	The arrow cursor turns into a hand when you hold your mouse pointer over an axis. Click and drag using to scroll along the axis or to rescale the axis. See Scroll and Scale Axes.

Tip: Consider setting the Autosave Timeout value in the General preferences to automatically save open reports at the specified number of minutes. This autosave value also applies to data tables, journals, scripts, projects, and reports.

•
