The Braces.jmp data in the Quality Control sample data folder records the defect count in boxes of automobile support braces. A box of braces is one inspection unit. The number of boxes inspected (per day) is the subgroup sample size, which can vary. The u-chart in Figure 3.24 is monitoring the number of brace defects per subgroup sample size. The upper and lower bounds vary according to the number of units inspected.
Note: When you generate a u-chart, and select Capability, JMP launches the Poisson Fit in Distribution and gives a Poisson-specific capability analysis. To use the Capability feature, the unit sizes must be equal.
|
1.
|
|
2.
|
Select Analyze > Quality and Process > Control Chart > U.
|
|
3.
|
|
4.
|
|
5.
|
|
6.
|
Click OK.
|

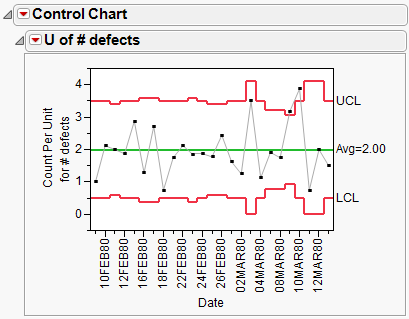

Figure 3.24 u-chart
