Build an MSA Design

Build an MSA design by selecting DOE > Special Purpose > MSA Design.

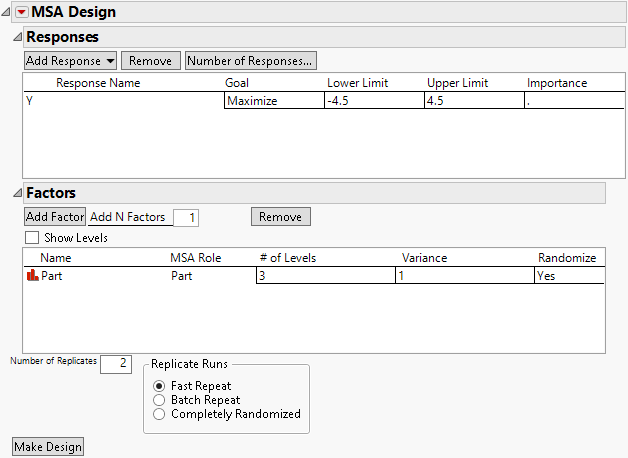

Figure 25.5 MSA Design Window

For more information about the options in the Select Columns red triangle menu, see Column Filter Menu in Using JMP.

The MSA design window updates as you work through the design steps. The steps to build an MSA design follow the flow in Figure 25.6.

Figure 25.6 MSA Design Flow
