Communications Preferences

(Windows only) Communications preferences customize settings for reading data from an external source. These settings need to be specified only if you are using an instrument to do so.

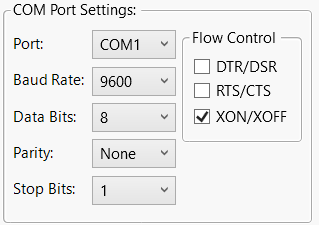

Figure 15.26 Communications Preferences

Communications Preferences

Table 15.24 Preferences on the Communications Page

Preference

Description

Port

Select the port that your data source uses.

Baud Rate

Set the baud rate for your data source.

Data Bits

Set the number of data bits (7 or 8).

Parity

Set the parity bit. None is the default setting.

Stop Bits

Set the stop bits (1 or 2).

Flow Control

Set the flow control. XON/XOFF is the default setting.
