Contour Profiler

In the Fit Least Squares report, use the interactive Contour Profiler option for optimizing response surfaces graphically. The Contour Profiler shows contours for the fitted model for two factors at a time. The report also includes a surface plot. For more information about the contour profiler, see Contour Profiler in Profilers.

Figure 3.34 shows a contour profiler view for the Tiretread.jmp sample data table. Run the data table script RSM for 4 Responses and select Profilers > Contour Profiler from the Least Squares Fit report menu.

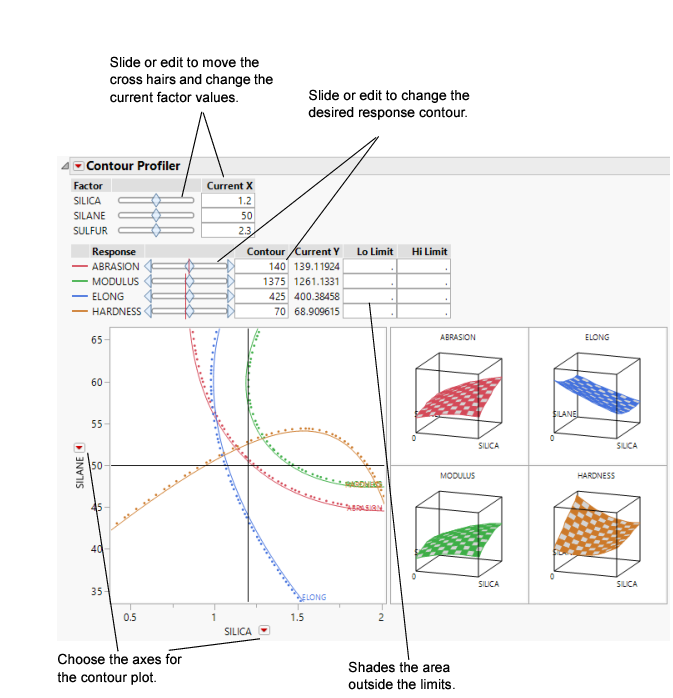

Figure 3.34 Contour Profiler
