Publication date: 07/08/2024
Launch a Legacy Control Chart Platform
When you launch a legacy control chart platform by selecting Analyze > Quality And Process > Legacy Control Charts, a launch window similar to Figure 14.3 appears. The specific controls vary depending on which type of chart you select. Initially, the window shows the following types of information:
• Process Information for measurement variable selection
• Chart type information (for more information, see Overview of Legacy Control Charts)

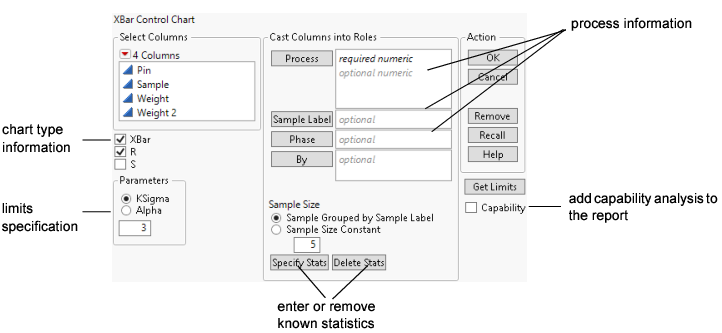

Figure 14.3 XBar Control Chart Launch Window
For more information about the options in the Select Columns red triangle menu, see Column Filter Menu in Using JMP.
