Example of Deprecated Dialog

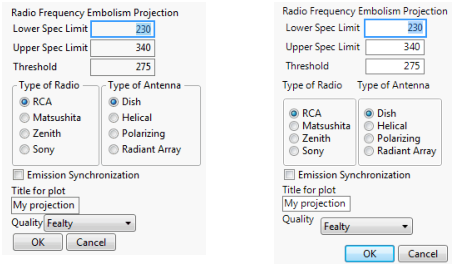

Compare the previous New Window() example to this example of the deprecated Dialog().

dlg = Dialog(

Title( "Dialog Example" ),

"Radio Frequency Embolism Projection",

"Lower Spec Limit", lsl = Edit Number( 230 ),

"Upper Spec Limit", usl = Edit Number( 340 ),

"Threshold", threshold = Edit Number( 275 )

"Type of Radio",

type = Radio Buttons( "RCA", "Matsushita", "Zenith", "Sony" )

"Type of Antenna",

antenna = Radio Buttons( "Dish", "Helical", "Polarizing",

"Radiant Array" )

synch = Check Box( "Emission Synchronization", 0 ),

"Title for plot",

"Quality",

quality = Combo Box( "Fealty", "Loyalty", "Piety", "Obsequiousness"

V List( Button( "OK" ), Button( "Cancel" ) )

If( dlg["Button"] == 1,

Show(

"OK",

dlg["lsl"],

dlg["usl"],

dlg["threshold"],

dlg["type"],

dlg["antenna"],

dlg["synch"],

dlg["title"],

dlg["quality"]

Show( "Canceled" )

注意：Use Return Result to get the same result in New Window() as with the deprecated Dialog(). See Construct a Modal Window for an example.
