Creating a Latin Hypercube Design
To use the Latin Hypercube method:
1.
Select DOE > Special Purpose > Space Filling Design.
2.
Enter responses, if necessary, and factors.
See Responses.
3.
Alter the factor level values, if necessary. Space-Filling Dialog for Four Factors shows adding two factors to the two existing factors and changing their values to 1 and 8 instead of the default –1 and 1.
Space-Filling Dialog for Four Factors
4.
Click Continue.
5.
In the design specification dialog, specify a sample size (Number of Runs). This example uses a sample size of eight.
6.
Click Latin Hypercube (see Space-Filling Design Dialog). Factor settings and design diagnostics results appear similar to those in Latin Hypercube Design for Four Factors and Eight Runs with Eight Levels, which shows the Latin Hypercube design with four factors and eight runs.
Note: The purpose of this example is to show that each column (factor) is assigned each level only once, and each column is a different permutation of the levels.

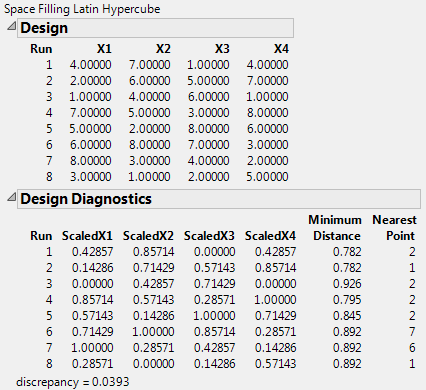

Latin Hypercube Design for Four Factors and Eight Runs with Eight Levels
