Normalized Box Plots
When drawing Normalized Box Plots, JMP first standardizes each column by subtracting off the mean and dividing by the standard deviation. Next, quantiles are formed for each standardized column. The box plots are formed for each column from these standardized quantiles.
Normalized Box Plot

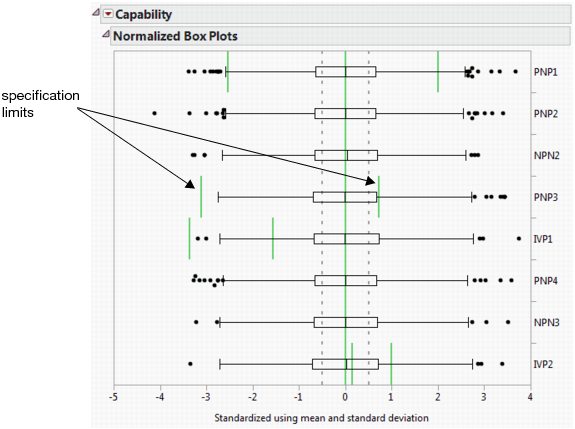

Normalized Box Plot shows the Normalized Box Plot for the Semiconductor Capability.jmp sample data table.
The green vertical lines represent the spec limits normalized by the mean and standard deviation. The gray dotted vertical lines are drawn at ±0.5, since the data is standardized to a standard deviation of 1.
