Additional Example: SVD Analysis
1.
Select Help > Sample Data Library and open Grocery Purchases.jmp.
2.
Select Analyze > Screening > Association Analysis.
3.
Select Product and click Item.
4.
Select Customer ID and click ID.
5.
7.
Figure 20.5 SVD Plots
8.

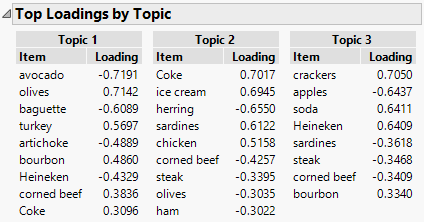

Figure 20.6 Topic Items Report

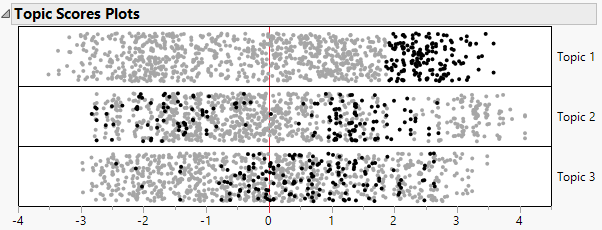

Figure 20.7 Topic Scores

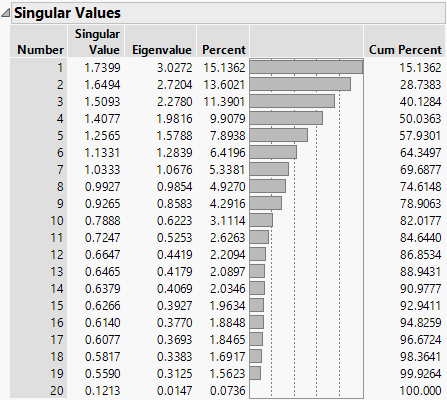

Figure 20.8 Singular Values Table
As seen in Figure 20.8, the first two singular values explain only about 30% of the variability in the grocery store data. Additional dimensions might be required to explain a sufficient amount of variability.
