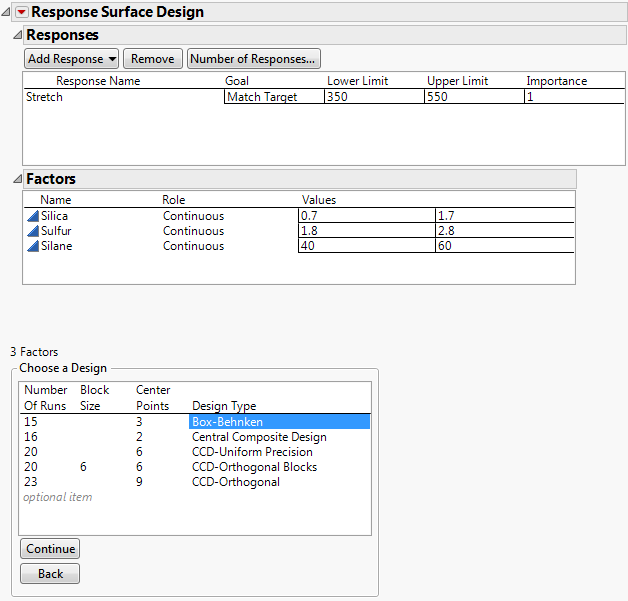

In this example, for convenience, you load the responses and factors from existing tables. When designing a new experiment on your own, enter the responses and factors manually. See Responses and Factors.
|
1.
|
Select DOE > Classical > Response Surface Design.
|
|
2.
|
|
3.
|
Click the Response Surface Design red triangle menu and select Load Responses.
|
|
4.
|
|
5.
|
Note: Setting the Random Seed in step 6 reproduces the exact results shown in this example. In constructing a design on your own, this step is not necessary.
|
6.
|
(Optional) Click the Response Surface Design red triangle menu and select Set Random Seed. Type 12345 and click OK.
|
|
7.
|
Click Continue to retain the Box-Behnken design selection.
|
|
8.
|
Click Make Table.
|
Figure 10.5 Box-Behnken Design Table
