Contour Profiler

Note: For complete details, see Contour Profiler in the Profilers book.

Use the interactive Contour Profiler for optimizing response surfaces graphically. The Contour Profiler shows contours for the fitted model for two factors at a time. The report also includes a surface plot.

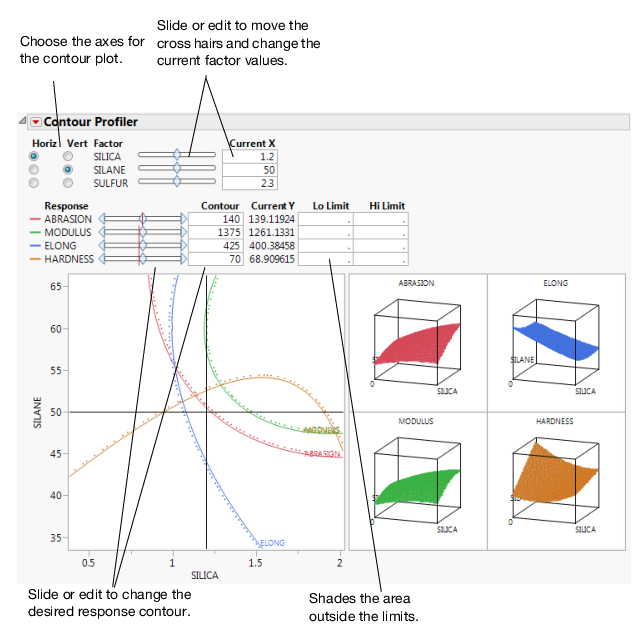

Figure 2.51 shows a contour profiler view for the Tiretread.jmp sample data table. Run the data table script RSM for 4 Responses and select Profilers > Contour Profiler from the Least Squares Fit report menu.

Figure 2.51 Contour Profiler
