Evaluate Design Window
The Evaluate Design window consists of two parts. See Figure 14.11, where all outline nodes are closed.
•
The Factors, Model, Alias Terms, and Design outlines define the model and design.
•
The Design Evaluation outline provides results that describe the properties of your design.

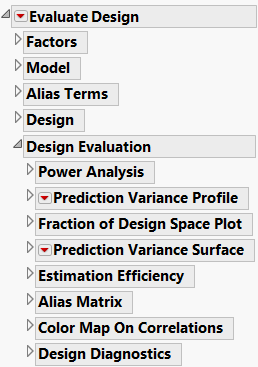

Figure 14.11 Evaluate Design Window Showing All Possible Outlines
The Factors, Model, Alias Terms, and Design outlines contain information that you enter about the factors, assumed model, potentially aliased effects of interest, and the actual design. JMP populates these outlines using your selections in the launch window and the design table. However, you can modify the effects in the Model and Alias Terms outlines. Once you have made your specifications, the Design Evaluation outlines are updated. You can open these outlines to see reports or control windows that provide information about your design.

•
Factors
•
Model
•
Alias Terms
•
Design
•
Design Evaluation
•
Power Analysis
•
Prediction Variance Profile
•
Fraction of Design Space Plot
•
Prediction Variance Surface
•
Estimation Efficiency
•
Alias Matrix
•
Color Map on Correlations
•
Design Diagnostics
