This example uses the Consumer Preferences.jmp sample data table to explore the relationship between employee tenure and having school age children. The Employee Tenure column is a numeric column with values 1, 2, 3, and 4. These values have been assigned Value Labels using the Value Labels column property. To evaluate a mean employee tenure using the mean score option in the categorical platform, you need to assign Value Scores to the column values. For more information about column properties, refer to The Column Info Window in the Using JMP book.
1.
Select Help > Sample Data Library and open Consumer Preferences.jmp.
2.
In the data table, right-click the Employee Tenure column heading and select Column Properties > Value Scores.
3.
Enter 1 for Value and 3 for Score and click Add.
4.
Enter 2 for Value and 7.5 for Score and click Add.
5.
Enter 3 for Value and 15 for Score and click Add.
6.
Enter 4 for Value and 25 for Score and click Add.
7.
8.
Select Analyze > Consumer Research > Categorical.
9.
Select Employee Tenure and click Responses on the Simple tab.
10.
Select School Age Children and click X, Grouping Category.
11.

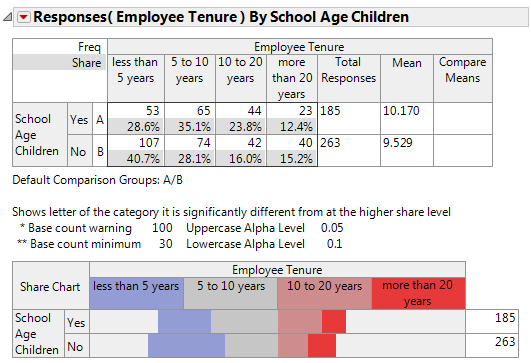

Figure 4.24 Categorical Report with Mean Scores
