This example uses the Devalt.jmp sample data table, from Meeker and Escobar (1998), and can be found in the Reliability folder of the sample data. It contains time-to-failure data for a device at accelerated operating temperatures. No time-to-failure observation is recorded for the normal operating temperature of 10 degrees Celsius; all other observations are shown as time-to-failure or censored values at accelerated temperature levels of 40, 60, and 80 degrees Celsius.
|
1.
|
|
2.
|
Select Analyze > Reliability and Survival > Fit Life by X.
|
|
3.
|
|
4.
|
|
5.
|
|
6.
|
Leave the Censor Code as 1.
|
|
7.
|
|
8.
|
|
9.
|
Select Weibull as the distribution.
|
|
10.
|
Keep Wald as the confidence interval method.
|

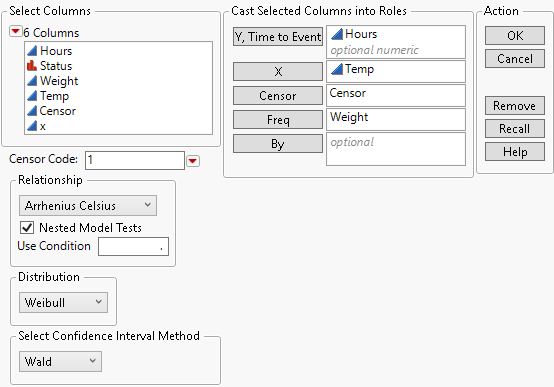

Figure 3.2 shows the completed launch window.
Figure 3.2 Fit Life by X Launch Window
|
11.
|
Click OK.
|

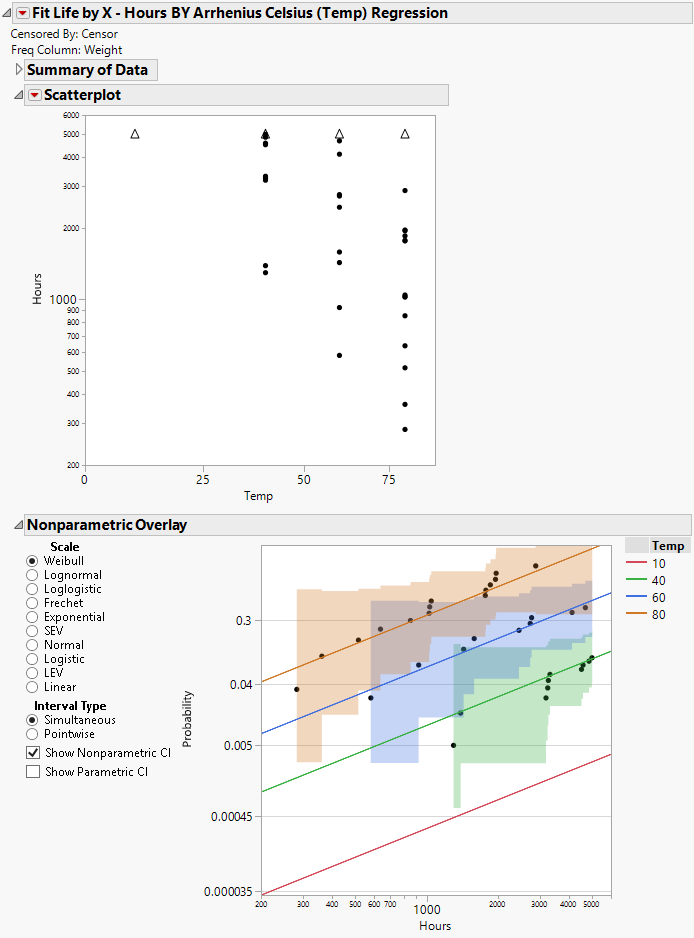

Figure 3.3 shows the top half of the Fit Life by X report window.
