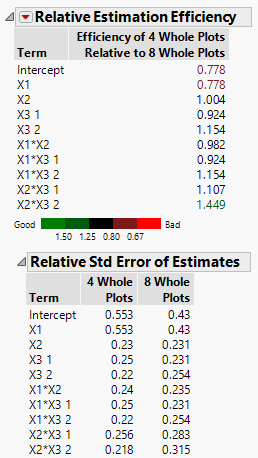

Figure 15.26 Relative Estimation Efficiency Comparing Two Split-Plot Designs
Figure 15.26 shows the Relative Estimation Efficiency outline for the split-plot designs compared in Split Plot Designs with Different Numbers of Whole Plots.
X is the model matrix defined in The Alias Matrix in Technical Details, and
is the ith diagonal entry of .
