The Cause-and-Effect Diagram

JMP Support 800.450.0135 (US)

Documentation Feedback
Your feedback is important to us. us any comments about our documentation.

Quality and Process Methods • Cause-and-Effect Diagrams • The Cause-and-Effect Diagram

•

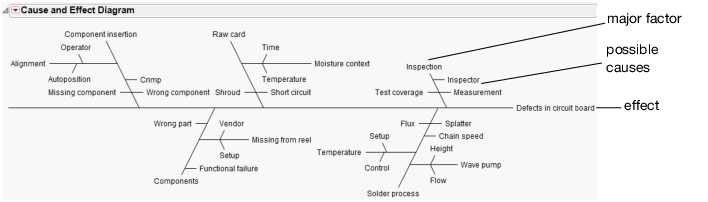

In Figure 12.5, the effect or problem, Defects in circuit board, appears on the right as the center line. The major contributing factors appear at the end of the branches (Inspection, Solder process, Raw Card, and so on.) Possible causes branch off each major factor.

Figure 12.5 Cause-and-Effect Diagram

•
