The Event Plot in Cumulative Damage displays time to failure or censoring. For details, see Event Plot in Life Distribution.
The Stress Patterns report shows a plot of the stress level over time for each of the stress pattern IDs. The Simulate option in this report enables you to simulate new data. Figure 4.6 shows an example of the Stress Patterns report plot. See Stress Patterns Options.

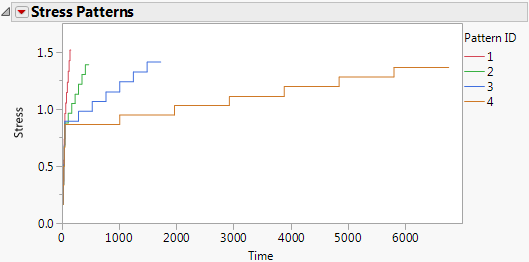

Figure 4.6 Stress Patterns Report
The Model List report provides the -2*LogLikelihood, number of parameters, AICc, and BIC statistics for each fitted distribution. Smaller values of each of these statistics (other than number of parameters) indicate a better fit. For more details about these statistics, see Likelihood, AICc, and BIC in the Fitting Linear Models book.
The Cox-Snell Residual P-P Plot red triangle menu has a Save Residuals option that saves the Cox-Snell residuals to three new columns in the failure time data table. The three columns are Left Residuals, Right Residuals, and Residual Weight. See Meeker and Escobar (1998, sec. 17.6.1) for a discussion of Cox-Snell residuals.
