Bar

In Graph Builder, the Bar element shows a bar chart of summary statistic values of one or more variables across the values or categories of one or more stratifying variables. The graph can display a single variable or multiple variables of any type arranged in the X and Y zones.

• If you add a single categorical variable, then each bar shows the count of observations in the corresponding level of the variable.

• If you add two variables, with one in each zone, each bar represents the value of the specified summary statistic for the variable on the specified Response Axis. There is a bar for each value or level of the stratifying variable.

• If you add multiple variables in each zone, multiple bars are plotted for each value or combination of levels of the stratifying variables.

Response Axis Variables with Character Data Type

If the variable on the Response Axis has the Character data type, then this variable is assigned numeric values:

• Integer values are assigned based on the Value Order column property or the default value ordering.

• These integer values range from 0 (highest level in value ordering) to the number of levels minus one (lowest value in value ordering).

• These integer values are used in calculating the Summary Statistic.

Note: If any of the rows used in constructing a bar on the plot are hidden and not excluded, the bar is not shown, but the position that it would occupy remains.

For an example of a graph that uses the bar element, see Example of an Overlaid Histogram and Ridgeline Chart and Example of a Packed Bar Chart.

Figure 3.31 Bar Options

Bar Style

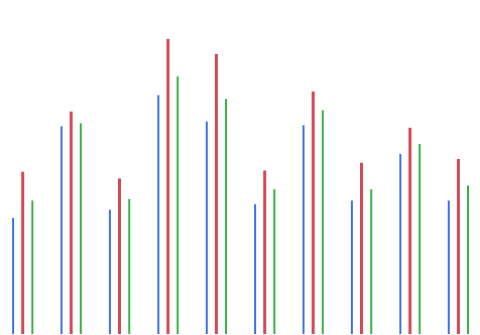

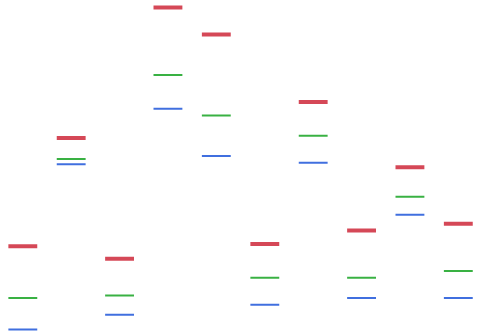

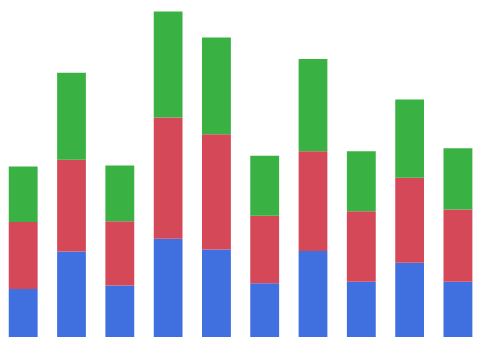

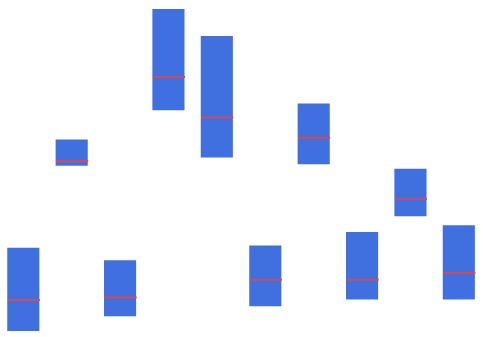

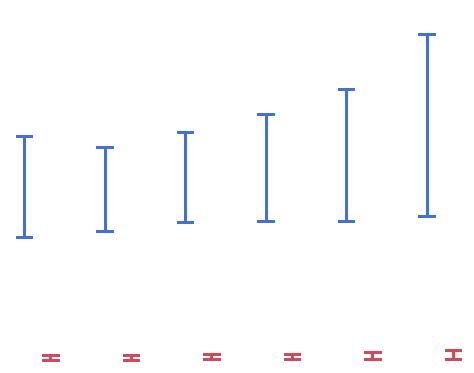

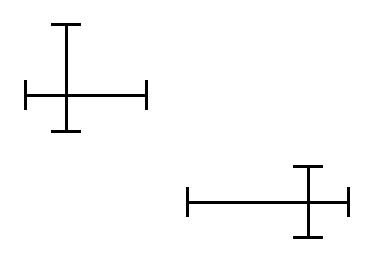

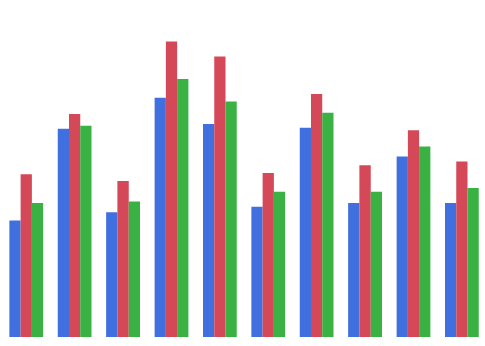

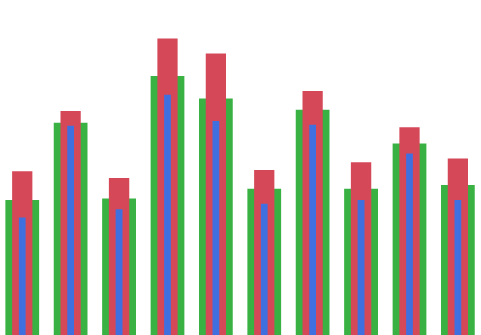

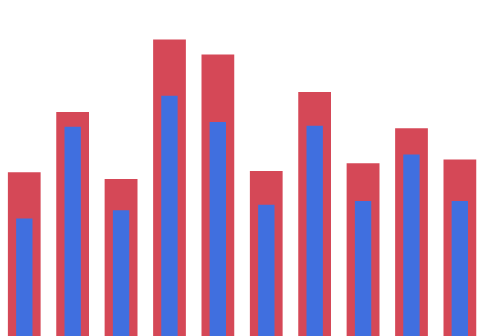

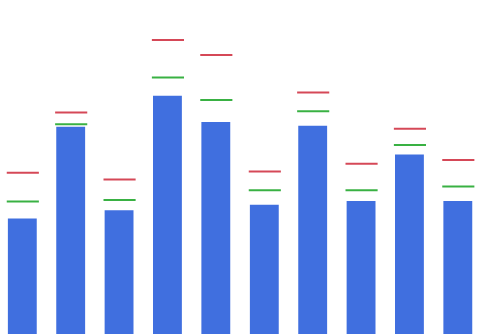

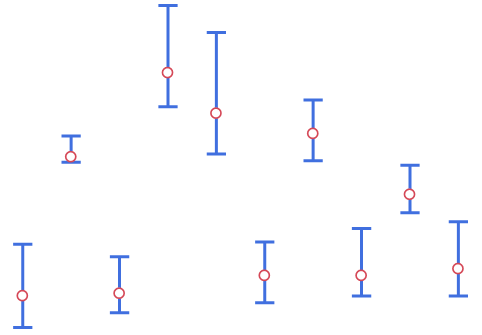

You can change the appearance of the bars that describe the levels of the stratifying variable. Many bar styles are applicable only when there are merged variables on the response axis, or if an overlay variable is present. For bar style descriptions, see Table 3.1. To change bar widths and space, right-click in the graph and select Customize > Bar.

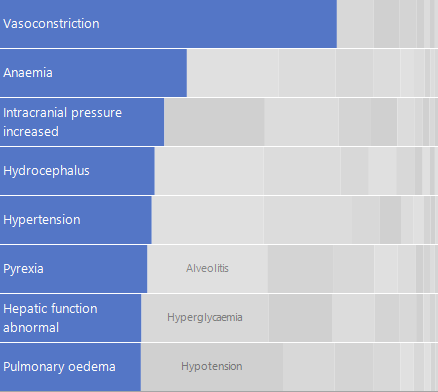

Packed Bar Style Options:

Packed Primaries

Specifies the number of primary bars.

Packed Placement

Specifies where the secondary bars are stacked. Options include the following:

First Stack—Start on the top row and fill it before moving to the next row.

Smallest Stack—Place each bar at the stack that is currently the smallest.

Separate Stack—Make a stack called Other where all secondary bars appear.

Packed Ordering

Specifies the order in which secondary bars are placed. Can be by size. The biggest bars appear first or by label, which is in natural order and usually alphabetical.

Packed Coloring

Specifies how the secondary bars are colored. Options include the following:

Bar color—Applies the same color as the primary bar color.

Faded bar color—Applies a faded version of the primary bar color.

Grays—Applies random shades of light gray.

Packed Labeling

Controls the percentage of secondary bars that are labeled.

Packed Primary Labels

Specifies where primary labels should be placed, either inside bars or on the axis.

Summary Statistic

Specifies the statistic that is used as bar labels and controls the response axis scale. Available statistics depend on the type of bar chart used.

Error Interval

Adds or removes error intervals in the graph when applicable, otherwise it is not available. To customize error bars, right-click in the graph and select Customize > Error Bar.

Interval Style

Draws error bars, error bands, or hash bands for the selected error interval.

Label

Adds or removes labels in the bar chart. You can label by value, percent of total value, or by row. When Label by Value is selected the values are determined by the summary statistic setting. Click and drag to reposition a label.

Label Format

(Available for value and percent labels.) Enables you to set the format for the cell labels.

Variables

Shows or hides graph elements for variables, or re-orders the display of variables.

Note: These options do not apply to variables in the Group X, Group Y, Wrap, or Page zones.

Check boxes are followed by the zone designation and the name of the variable. Use check boxes to do the following:

– Show or hide the elements corresponding to a variable in a zone.

– Add or remove the effect of applying the Color, Size, Shape, or Freq variable to the variable in the zone.

Tip: If you have multiple graphs, you can color or size each graph by different variables. Drag a second variable to the Color or Size zone, and drop it in a corner. In the Variables option, select the specific color or size variable to apply to each graph.

Use arrows to re-order the display if there are multiple variables in a zone. Highlight a variable name and click an arrow to reposition it.

For an example using Variables, see Example of an Area and Line Chart.

Red Triangle Options for Bar

Response Axis

Specifies the axis for the variable that is used as the response in plotting the bars. This option is available only when each axis contains at least one variable with a Continuous modeling type. If only one variable is Continuous, its axis is the response axis. The Auto setting is the Y axis.

Save Summary Formula

Saves the formula for the summary statistics to the data table.

Overlap

Specifies the amount of overlap (Auto, None, Half, Full) between multiple bars.
