Edit Display Box Properties

To format reports before saving them to a script, edit display box properties such as color and position. In the report window, select Edit > Properties (Windows) or View > Show Properties (macOS) and then click the node that you want to edit.

In 图 11.5, the Summary of Fit statistics were selected below the graph. The Background Color and Text Color were then changed in the Properties. These changes are preserved when you save the report as a script or journal the report.

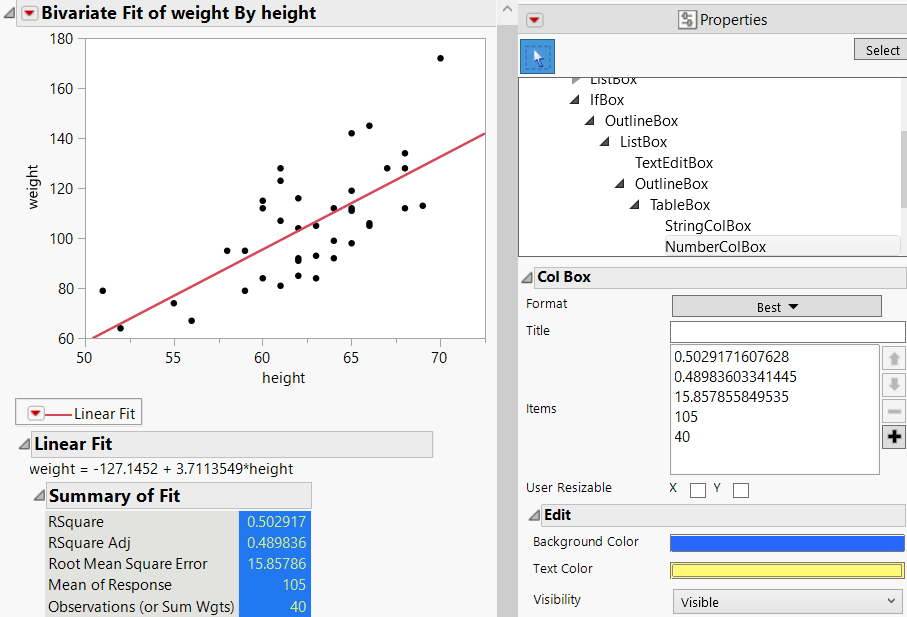

Figure 11.5 Example of Showing Properties for a Plot
